Editor API Reference

ElucimEditor

The main editor component — all-in-one canvas, toolbar, inspector, and timeline.

interface ElucimEditorProps {
  initialDocument?: ElucimDocument;
  initialFrame?: number | 'last';
  theme?: ElucimTheme;           // unified content theme
  editorTheme?: Record<string, string>;  // explicit chrome overrides
  onDocumentChange?: (document: ElucimDocument) => void;
  onBrowseImage?: BrowseImageFn; // custom image picker callback
  imageResolver?: ImageResolverFn; // resolve image refs to URLs
  className?: string;
  style?: React.CSSProperties;
}

Prop	Type	Default	Description
initialDocument	ElucimDocument	Empty 800×600 scene	Starting scene document
initialFrame	number | 'last'	0	Starting frame. Use 'last' to start at final frame.
theme	ElucimTheme	—	Unified content theme — same type used by DslRenderer. Editor chrome is auto-derived from content tokens.
editorTheme	Record<string, string>	—	Explicit chrome overrides — accepts hex, named colors, or var() refs. Overrides auto-derived values.
onDocumentChange	(doc: ElucimDocument) => void	—	Called on every document change (skips initial mount)
onBrowseImage	BrowseImageFn	—	Custom image picker callback. When set, shows a ”…” browse button next to image fields. See Image Assets.
imageResolver	ImageResolverFn	—	Resolves opaque image ref values to renderable URLs. See Image Assets.
className	string	—	CSS class on root element
style	CSSProperties	—	Inline styles on root element

Observing document changes

function MyApp() {
  const handleChange = (doc: ElucimDocument) => {
    // Called on every edit — debounce if doing expensive work
    console.log('Document changed:', doc);
  };

  return (
    <ElucimEditor
      initialDocument={myDoc}
      onDocumentChange={handleChange}
    />
  );
}

ElucimEditorLayout

The internal layout component used by ElucimEditor. Must be rendered inside an EditorProvider. Use this when you need custom composition (e.g. adding your own panels) while keeping the standard floating-panel layout, scrollbar styles, and theme injection.

import { EditorProvider, ElucimEditorLayout, useEditorDocument } from '@elucim/editor';

function SaveButton() {
  const doc = useEditorDocument();
  return <button onClick={() => save(doc)}>Save</button>;
}

function MyEditor({ doc }: { doc: ElucimDocument }) {
  return (
    <EditorProvider initialDocument={doc}>
      <ElucimEditorLayout theme={myTheme} />
      <SaveButton />
    </EditorProvider>
  );
}

Components

Export	Description
ElucimEditor	Main editor — canvas + toolbar + inspector + timeline
ElucimEditorLayout	Internal layout for custom composition inside EditorProvider
ElucimCanvas	Canvas with zoom/pan and selection overlays
Toolbar	Element template palette
Inspector	Property editing panel
Timeline	Animation playback controls
FloatingPanel	Draggable floating container
SelectionOverlay	Selection boxes, resize/rotate handles
DotGrid	Zoom-adaptive dot grid background
Minimap	Canvas overview minimap
ZoomControls	Zoom buttons and zoom-to-fit

Hooks

useEditorState()

Returns the full editor state and dispatch function.

function useEditorState(): [EditorState, React.Dispatch<EditorAction>];

const [state, dispatch] = useEditorState();

// Read state
console.log(state.selectedIds);
console.log(state.viewport.zoom);

// Dispatch actions
dispatch({ type: 'SELECT', ids: ['element-1'] });
dispatch({ type: 'UNDO' });

useEditorDocument()

Returns the current ElucimDocument.

function useEditorDocument(): ElucimDocument;

useEditorSelection()

Returns the array of selected element IDs.

function useEditorSelection(): string[];

Other Hooks

Hook	Description
useViewport()	Zoom/pan state and handlers
useDrag()	Element drag, resize, and rotate interactions
useMarquee()	Marquee (lasso) selection interactions
useMeasuredBounds()	DOM-based element bounds measurement

State Types

EditorState

interface EditorState {
  document: ElucimDocument;
  selectedIds: string[];
  viewport: { x: number; y: number; zoom: number };
  past: ElucimDocument[];
  future: ElucimDocument[];
  currentFrame: number;
  isPlaying: boolean;
  activeTool: EditorTool;
  isPanning: boolean;
  toolbarPosition: { x: number; y: number };
  inspectorPosition: { x: number; y: number } | null;
  inspectorPinned: boolean;
  toolbarCollapsed: boolean;
}

EditorTool

type EditorTool = 'select' | 'rect' | 'circle' | 'line' | 'arrow' | 'text' | 'latex';

EditorAction

All available dispatch actions:

Action	Payload	Description
SELECT	ids: string[]	Replace selection
SELECT_ADD	id: string	Add to selection
SELECT_TOGGLE	id: string	Toggle element in/out of selection
DESELECT_ALL	—	Clear selection
SET_DOCUMENT	document: ElucimDocument	Replace entire document
UPDATE_ELEMENT	id: string, changes: object	Update element properties
UPDATE_CANVAS	changes: object	Update scene root properties
ADD_ELEMENT	element: object	Add element to scene
DELETE_ELEMENTS	ids: string[]	Remove elements
DUPLICATE_ELEMENTS	ids: string[], offset?: {dx, dy}	Clone elements with offset (default +20,+20)
MOVE_ELEMENT	id: string, dx: number, dy: number	Translate element (moves all selected if multi-selected)
RESIZE_ELEMENT	id: string, handle: string, dx, dy, constrain?: boolean	Resize element. constrain forces uniform scaling.
ROTATE_ELEMENT	id: string, angleDeg: number	Rotate element
GROUP_ELEMENTS	ids: string[]	Group 2+ elements
UNGROUP	id: string	Ungroup a group element
RENAME_ELEMENT	id: string, newId: string	Rename element ID
REORDER_ELEMENT	id: string, newIndex: number	Change element z-order by index
BRING_FORWARD	ids: string[]	Move elements one step forward
SEND_BACKWARD	ids: string[]	Move elements one step backward
BRING_TO_FRONT	ids: string[]	Move elements to front
SEND_TO_BACK	ids: string[]	Move elements to back
ALIGN_ELEMENTS	ids: string[], direction: AlignDirection	Align elements (left, right, top, bottom, center-h, center-v)
DISTRIBUTE_ELEMENTS	ids: string[], direction: DistributeDirection	Distribute 3+ elements evenly (horizontal, vertical)
SET_VIEWPORT	viewport: Partial<Viewport>	Update zoom/pan
SET_FRAME	frame: number	Seek to frame
SET_PLAYING	playing: boolean	Play or pause
SET_TOOL	tool: EditorTool	Switch active tool
ZOOM_TO_FIT	—	Auto-fit canvas to viewport
UNDO	—	Undo last action
REDO	—	Redo last undone action

CANVAS_ID

Sentinel value used when the canvas itself is selected:

import { CANVAS_ID } from '@elucim/editor';
// CANVAS_ID === '__canvas__'

const isCanvasSelected = selectedIds.includes(CANVAS_ID);

Keyboard Shortcuts

All shortcuts work when the editor canvas is focused. They are disabled when typing in input fields.

Editing

Shortcut	Action
Delete / Backspace	Delete selected elements
Ctrl+Z	Undo
Ctrl+Y / Ctrl+Shift+Z	Redo
Ctrl+A	Select all elements
Ctrl+D	Duplicate selected elements
Ctrl+C	Copy selected elements
Ctrl+V	Paste copied elements
Ctrl+G	Group selected elements (2+)
Ctrl+Shift+G	Ungroup selected group
Escape	Deselect all, reset to select tool

Z-Order

Shortcut	Action
Ctrl+]	Bring forward one step
Ctrl+[	Send backward one step
Ctrl+Shift+]	Bring to front
Ctrl+Shift+[	Send to back

Navigation

Shortcut	Action
Arrow Keys	Nudge selected elements by 1px
Shift+Arrow Keys	Nudge by 10px
Ctrl+= / Ctrl+-	Zoom in / out
Ctrl+0	Zoom to fit
Ctrl+1	Zoom to 100%
Space (hold)	Pan mode
Ctrl/Cmd+Scroll	Zoom at cursor

Mouse Modifiers

Interaction	Behavior
Click element	Select (replaces selection)
Shift/Ctrl/Cmd+Click element	Toggle in/out of selection
Drag element	Move selected elements
Alt+Drag element	Duplicate in place, then drag copy
Shift+Drag resize handle	Constrained (uniform) resize
Drag on empty canvas	Marquee selection
Shift+Drag on empty canvas	Add to existing selection
Middle-click drag	Pan
Right-click	Context menu

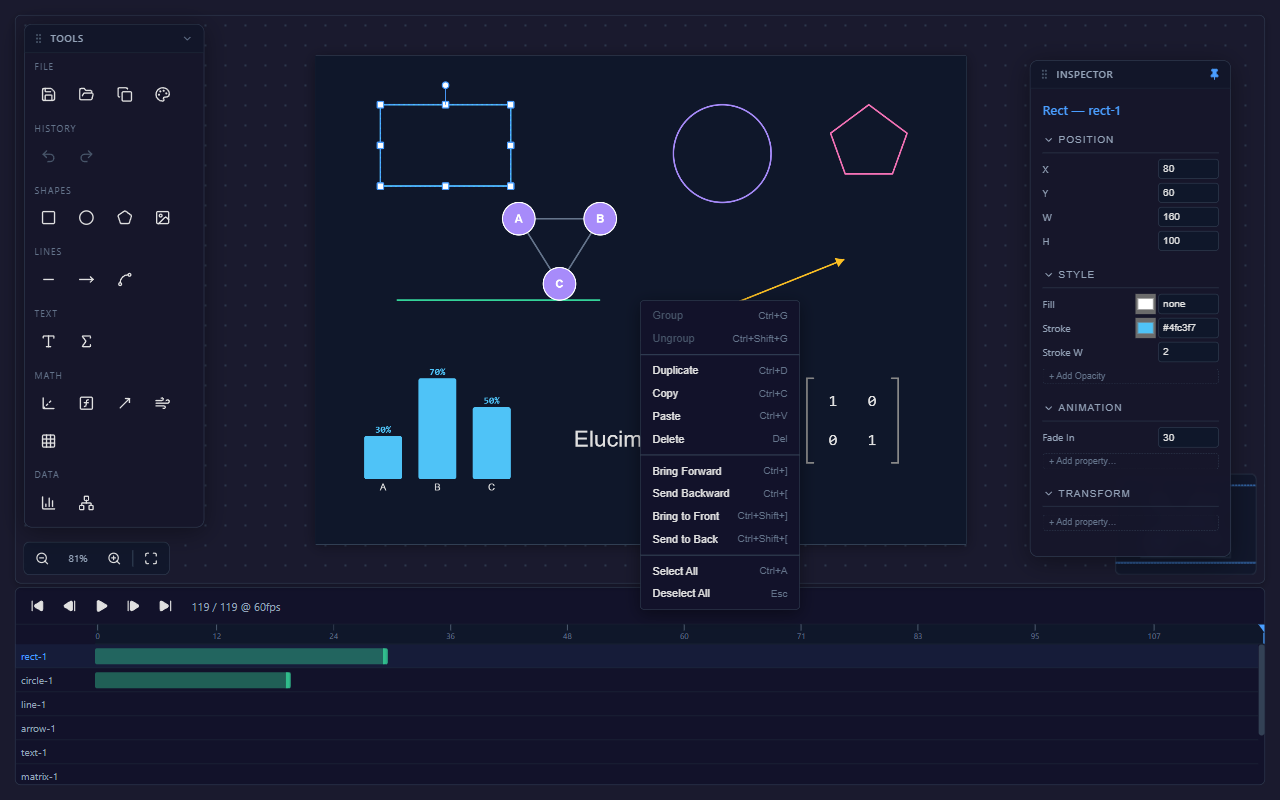

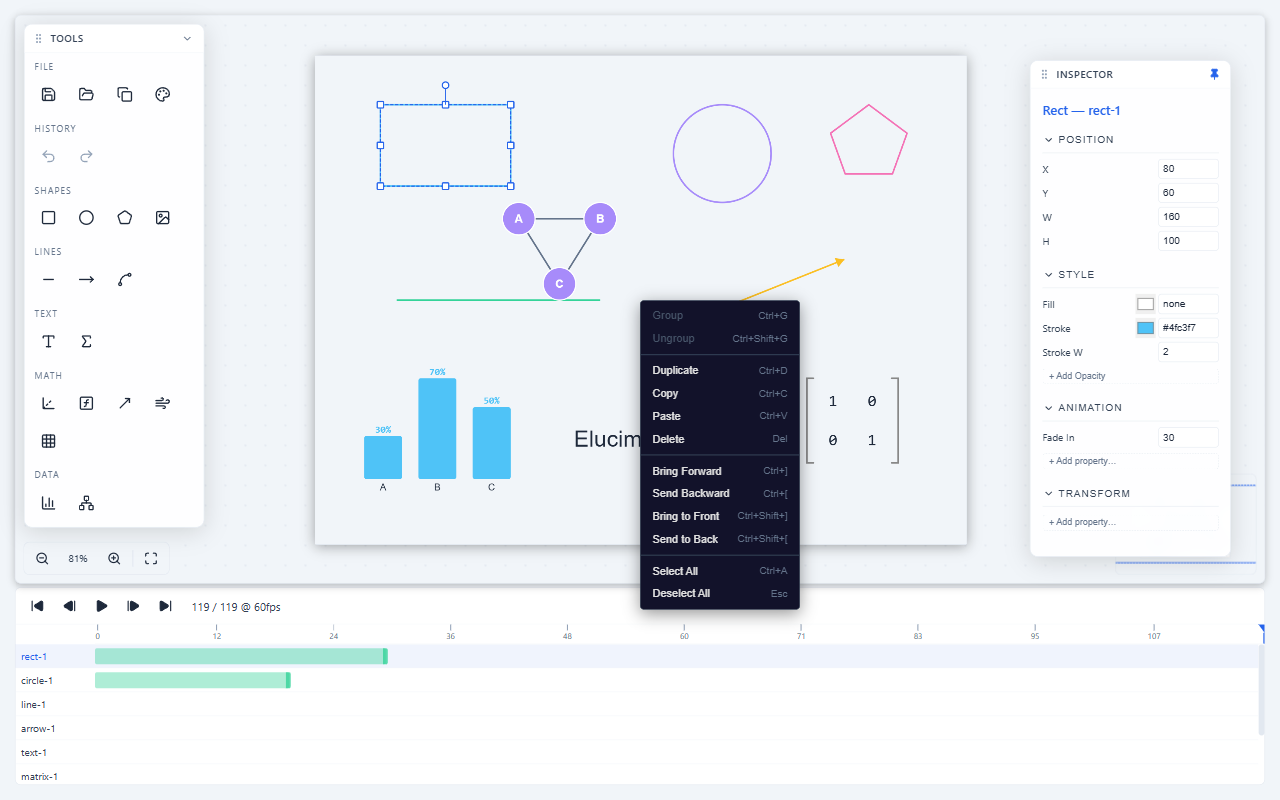

Context Menu

Right-click on elements or the canvas to access:

• Group / Ungroup — combine or split element groups
• Duplicate / Copy / Paste / Delete — clipboard and element operations
• Bring Forward / Send Backward / Bring to Front / Send to Back — z-order controls
• Align (when 2+ selected) — Left, Right, Top, Bottom, Center ↔, Center ↕
• Distribute (when 3+ selected) — Horizontal, Vertical (even spacing)
• Select All / Deselect All

Utilities

Import / Export

// Serialize document to JSON string
function exportToJson(document: ElucimDocument): string;

// Parse JSON string to document
function importFromJson(json: string): ElucimDocument;

// Trigger browser file download
function downloadAsJson(document: ElucimDocument, filename?: string): void;

Bounds & Hit Testing

// Compute bounding box for a DSL element
function getElementBounds(element: object):
  { x: number; y: number; width: number; height: number } | null;

// Merge multiple bounding boxes
function mergeBounds(boxes: Array<{ x: number; y: number; width: number; height: number }>):
  { x: number; y: number; width: number; height: number };

// Hit-test a point against a bounding box
function isPointInBounds(
  point: { x: number; y: number },
  bounds: { x: number; y: number; width: number; height: number }
): boolean;

// Snap a value to the nearest grid increment
function computeSnap(value: number, gridSize: number): number;

Unified Theming

Pass the same ElucimTheme to both DslRenderer and ElucimEditor — the editor automatically derives its chrome tokens from the content theme:

import type { ElucimTheme } from '@elucim/core';

const myTheme: ElucimTheme = {
  foreground: '#e0e0e0',
  background: '#1a1a2e',
  primary: '#4fc3f7',
  muted: '#64748b',
  surface: '#1e293b',
  border: '#334155',
};

// Same theme for both — no duplicate token maps needed
<DslRenderer dsl={doc} theme={myTheme} colorScheme="dark" />
<ElucimEditor initialDocument={doc} theme={myTheme} />

Use editorTheme to override specific chrome tokens while keeping the auto-derivation:

<ElucimEditor
  initialDocument={doc}
  theme={myTheme}
  editorTheme={{ 'color-scheme': 'light', accent: '#ff6b35' }}
/>

Theming

// Get CSS var() reference with fallback
function v(token: string): string;

// Merge theme overrides with defaults
function buildThemeVars(overrides?: Record<string, string>): Record<string, string>;

// Derive editor chrome from an ElucimTheme content theme.
// Uses CSS color-mix() for panel/chrome/input-bg, so var() surface values work correctly.
function deriveEditorTheme(contentTheme: ElucimTheme, colorScheme: 'light' | 'dark'): Record<string, string>;

// Generate SVG rotation cursor with custom color
function makeRotateCursor(color?: string): string;

// Pre-built rotation cursor with default accent
const ROTATE_CURSOR: string;

// Full token registry with defaults
const EDITOR_TOKENS: Record<string, string>;

// Light-mode token defaults (used when color-scheme: 'light')
const EDITOR_TOKENS_LIGHT: Record<string, string>;

deriveEditorTheme in detail

Automatically maps content tokens → editor chrome tokens:

import { deriveEditorTheme } from '@elucim/editor';
import type { ElucimTheme } from '@elucim/core';

const myTheme: ElucimTheme = {
  foreground: '#e0e0e0',
  background: '#1a1a2e',
  surface: 'var(--my-surface)',  // CSS var() values work
  primary: '#4fc3f7',
};

const chrome = deriveEditorTheme(myTheme, 'dark');
// chrome.panel  → 'color-mix(in srgb, var(--my-surface) 95%, transparent)'
// chrome.chrome → 'color-mix(in srgb, var(--my-surface) 85%, transparent)'
// chrome.fg     → '#e0e0e0'
// chrome.accent → '#4fc3f7'

Panel, chrome, and input-bg use CSS color-mix() to derive semi-transparent variants from the surface color. This works with both hex values and var() references — no JavaScript color parsing needed.

Tip

You rarely need to call deriveEditorTheme directly — ElucimEditor calls it automatically when you pass a theme prop. Use editorTheme only to override specific tokens.

Templates

// All available element templates
const ELEMENT_TEMPLATES: Array<{
  type: string;
  category: string;
  label: string;
  defaults: object;
}>;

// Templates grouped by category
function getTemplatesByCategory(): Record<string, typeof ELEMENT_TEMPLATES>;

// Display labels for categories
const CATEGORY_LABELS: Record<string, string>;
